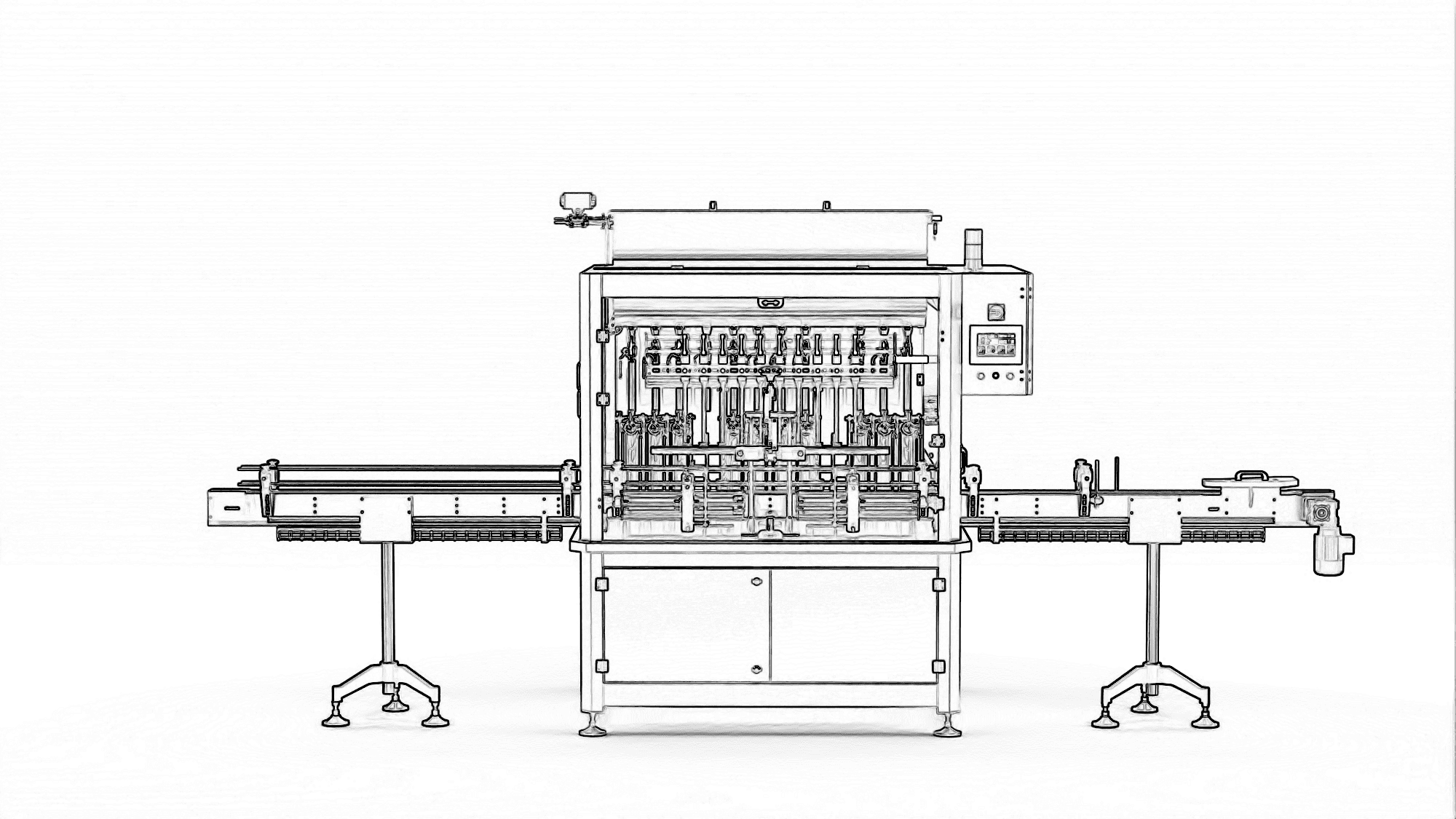

Fully digital control that surpasses traditional filling systems: Maximize your production capacity with our high-performance linear volumetric filling system, offering millimeter-precise weight accuracy thanks to servo motor technology, product changeover in seconds via touchscreen, and flawless flow control for liquids of all viscosities.
| Specifications | Details |
|---|---|
| Filling System | Volumetric, Servo Motor Controlled Linear Filling System |
| Nozzle Control System | Precise and fast nozzle control with servo motor |
| Filling Range | 50 ml - 1000 ml |
| Number of Nozzles | 2-10 Nozzles |
| Filling Speed | 1000 to 5000 bottles/hour |
| Filling Accuracy | ±0.30% to ±0.50% |
| Operator Interface | Suitable for fluid, foamy, semi-viscous, and hazardous liquids |
| Material Compatibility | Compatible with glass, PET, HDPE, and aluminum bottles |
| Wetted Parts Material | Seals and gaskets selected according to the product being filled |
| HMI | 7-inch touchscreen for easy operation |
| Power Source | Electrical and servo motor–supported systems |
| Filling Tank | Equipped with its own filling tank and a level sensor to measure liquid level |
| Application Areas | Food, Cosmetics, Chemical, and Pharmaceutical Industries |
| Machine Structure | Durable stainless steel (304/316) construction with minimal product-contact parts |
