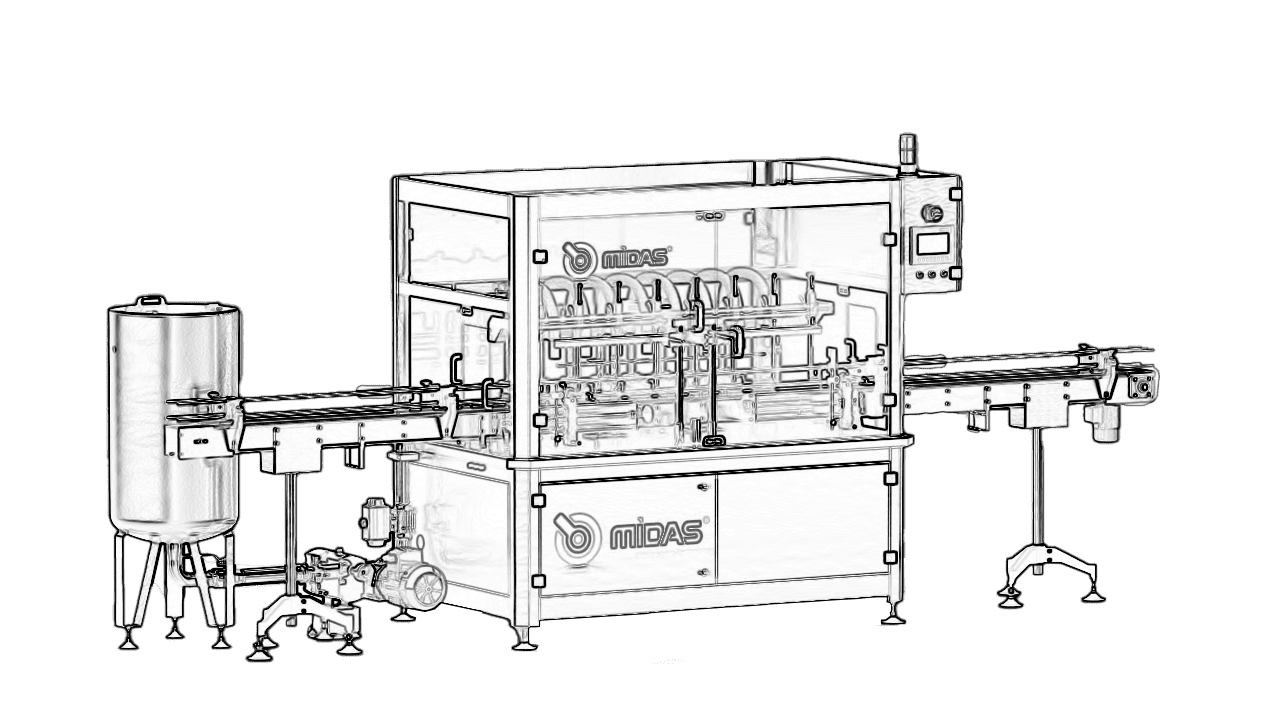

Liquid Filling Machine
Introducing our cutting-edge flowmeter filling solutions that push the boundaries of traditional filling systems; offering millimeter-precise accuracy through magnetic or Coriolis measurement technology, independent of mechanical part wear, and fully compliant with CIP (clean-in-place) processes.
| Specifications | Details |
|---|---|
| Filling System | Flowmeter-Based Filling System |
| Nozzle Control System | Precise and fast nozzle control with servo motor |
| Filling Range | 250 ml - 5000 ml |
| Number of Nozzles | 2–10 Nozzles |
| Filling Speed | 1000 to 5000 bottles/hour |
| Filling Accuracy | ±0.30% to ±0.50% |
| Product Compatibility | Suitable for fluid, foamy, semi-viscous, and hazardous liquids |
| Material Compatibility | Compatible with glass, PET, HDPE, and aluminum bottles |
| Wetted Parts Material | Seals and gaskets selected according to the product being filled |
| HMI | 7-inch touchscreen for easy operation |
| Power Source | Electrical and servo motor–supported systems |
| Filling Tank | Equipped with its own filling tank and a level sensor to measure liquid level |
| Application Areas | Food, Cosmetics, Chemical, and Pharmaceutical Industries |
| Machine Structure | Durable stainless steel (304/316) construction with minimal product-contact parts |
