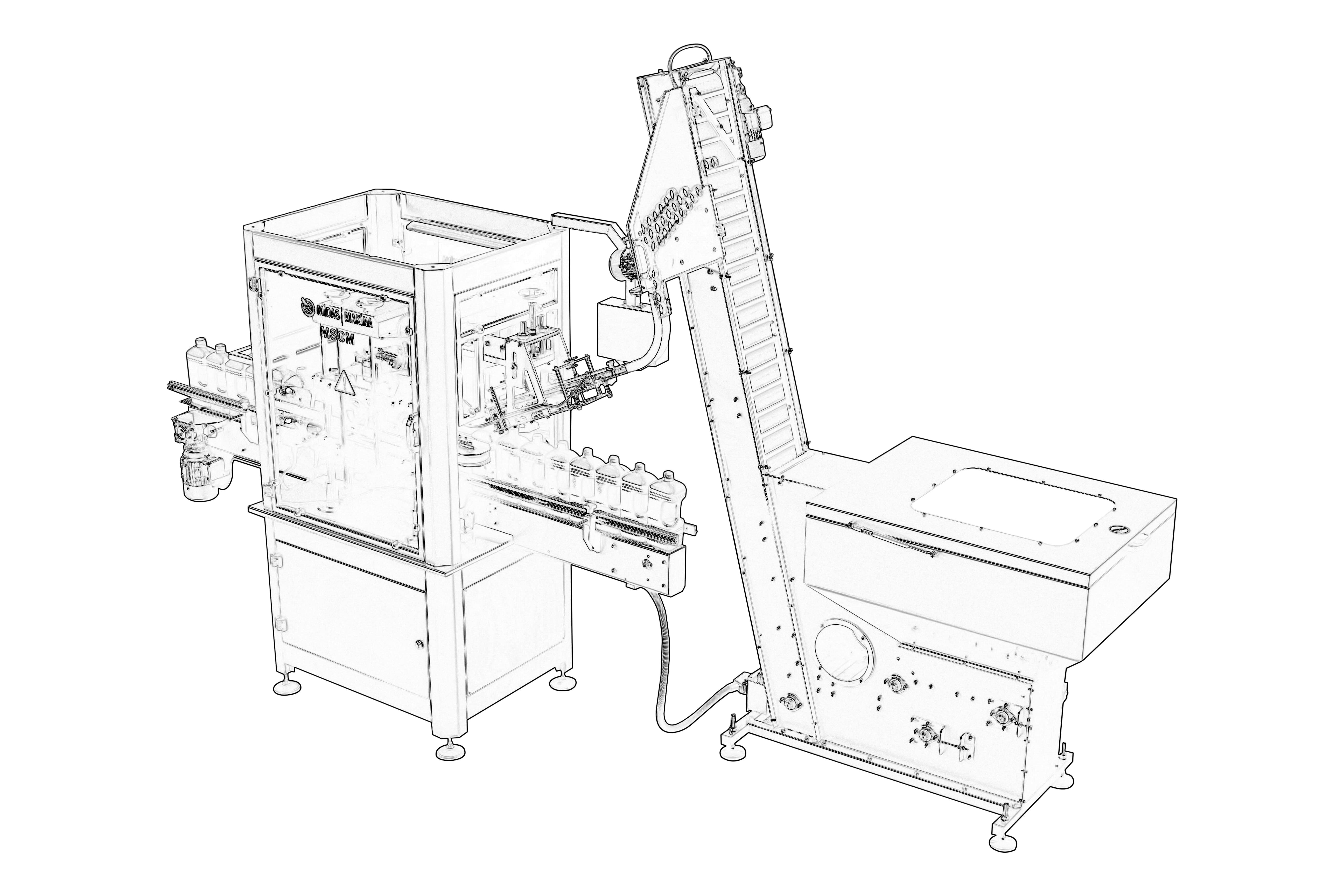

Discover our fully automated inline solution that performs high-speed capping in a linear plane without interrupting bottle flow in your production line; offers millimeter-precise torque accuracy for all types of caps, including screw-on, snap-on, and safety band caps; and adapts to different packaging forms in seconds.
| Features | Details |
|---|---|
| Machine Structure | Stainless steel (AISI 304) |
| Cap Feeding System | Elevator or vibratory system; photoelectric sensor controlled, cap feeding operates on demand |
| Disc Configuration | 4, 6, or 8-disc options; independent spring-loaded tightening discs |
| Cap Dimensions | Diameter range from 8 mm to 130 mm |
| Capping Precision | Instant torque adjustment capability (optional pneumatic clutch available) |
| Bottle Compatibility | Glass, plastic, metal, and various packaging types |
| Bottle Height | Between 25 mm and 355 mm (optional motorized height adjustment available) |
| Bottle Conveyor Features | Adjustable width, inclination, and angle; independent speed control |
| Capping Speed | 40–120 bottles per minute (depending on capacity, product, and cap characteristics) |
| Power Requirement | 220V, 50/60Hz, 15 Amps (single phase) |
| HMI | 7-inch touchscreen; user-friendly interface |
| Application Areas | Food, Cosmetic, Chemical, and Pharmaceutical Industries |
